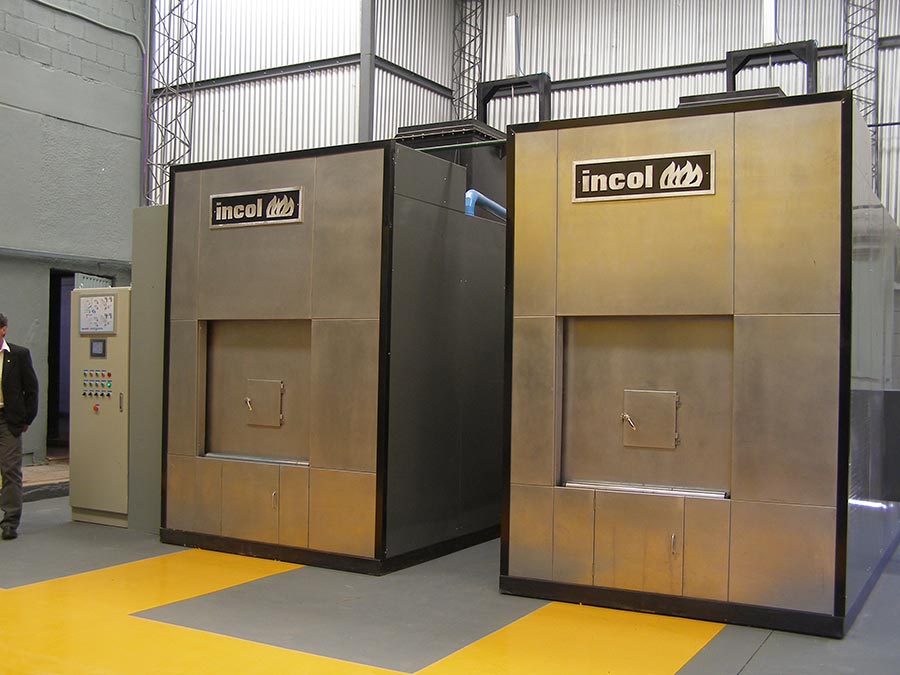

“HYPER JET PAK” OF HIGH PERFORMANCE
Crematory for HUMAN BODIES with Automatic Combustion Equipment. It has:
- Two high performance burners placed on each chamber.
- Stainless Steel Front Side combinated with Painted Parts
- Automatic Load Door
- Natural Gas Burners or GLP Gas
- Individual recipient used ashes removal
- Front roller used for body container movement
- High sophistication control system
- Isolated metallic chimney, inside refractory
- Average Time of Cremation: 45 a 55 minutes.
- Time of Residence in Secondary Chamber: more than 2 seconds
It is able to be complemented with the following auxiliary equipment:
- Gas Cleaning Systems,
- Continuous Emission Monitoring System
- Remote Control and Diagnostic Computer System “INCOLSOFT 5.1”
“SUPER JET PAK”
Crematory used for HUMAN BODIES with Automatic Combustion Equipment. It has:
- High Performance Burners placed on each chamber.
- Stainless Steel Front Side combinated with Painted Parts
- Automatic Load Door
- Natural Gas Burners or GLP Gas
- Individual recipient used ashes removal
- Front roller used for body container movement
- High sophistication control system
- Isolated metallic chimney, inside refractory
- Average Time of Cremation: 75 a 100 minutes.
- Time of Residence in Secondary Chamber: more than 2 seconds
It is able to be complemented with the following auxiliary equipment:
- Gas Cleaning Systems
- Continuous Emission Monitoring System
- Remote Control and Diagnostic Computer System “INCOLSOFT 5.1”
"HYPER JET PAK PET I, II Y III" OF HIGH PERFORMANCE
Crematory for PETS Small, Medium and Big animals.
- Two high performance burners placed on each chamber.
- Stainless Steel Front Side combinated with Painted Parts
- Automatic Load Door
- Natural Gas Burners or GLP Gas
- Individual recipient used ashes removal
- Front roller used for body container movement
- High sophistication control system
- Isolated metallic chimney, inside refractory
- Average Time of Cremation: 45 a 55 minutes.
- Time of Residence in Secondary Chamber: more than 2 seconds
It is able to be complemented with the following auxiliary equipment:
- Gas Cleaning Systems
- Continuous Emission Monitoring System
- Remote Control and Diagnostic Computer System “INCOLSOFT 5.1”
SUPER JET PAK PET I, II Y III
Crematory for PETS Small, Medium and Big animals.
- High performance burners placed on each chamber.
- Stainless Steel Front Side combinated with Painted Parts
- Automatic Load Door
- Natural Gas Burners or GLP Gas
- Individual recipient used ashes removal
- Front roller used for body container movement
- High sophistication control system
- Isolated metallic chimney, inside refractory
- Average Time of Cremation: 75 a 100 minutes.
- Time of Residence in Secondary Chamber: more than 2 seconds
It is able to be complemented with the following auxiliary equipment:
- Gas Cleaning Systems
- Continuous Emission Monitoring System
- Remote Control and Diagnostic Computer System “INCOLSOFT 5.1”
“HYPER ABAT” - EQUIPMENT FOR MERCURY ABATMENT
This Treatment and Cleaning System of Gases Escaping through chimney, fulfill with established in the “U.S.E.P.A.”, in the British Standard”, in the “27BPM.SCHV” of Germany, “VLAREM II” of Belgic and with the current environmental norms in Italy, Spain, Portugal, Austria and other countries of East Europe.
Our Equipment Design, fulfill the following steps:
Gases of Post-Combustion Chambers are treated, as follows:
- A- Event of Abrupt Cooling of Gases from 900º up to 200º
- B- Neutralization of acid gases with components like HCI, SO2, HF, etc.
- C- Removal of Mercury (Hg), Particulate Material and Heavy Metals.
GAS CLEANIG SYSTEM WET WAY -9 (NINE) PROCESS PHASES
Standards Environmental Emission demand the use after the post-combustion of equipment for Gases Cleaning emitted to the atmosphere.
It is integrated by Scrubbers Towers of high efficiency, used for the removal of Particulate Material, Acid Gases and Heavy Metals. Also, it is used to inhibit generation of Dioxins and Furans, in order to keep them under specified limits.
Using this tested technology, with automatic controls, it is possible fulfill with the limits of Emission Gaseous Effluents established by the legislations, which are not much restrictive.
EQUIPMENTS TO COOLING GASES WET AND DRY WAY
Several Countries have Environmental Standards that require the use of Cooling Systems so as to ensure that the temperature of the exhaust gases is less than 250 °C.
